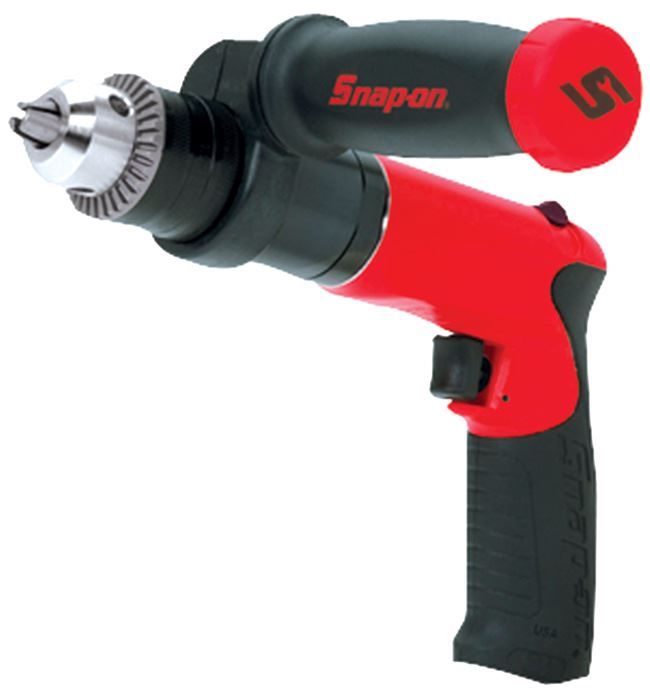

PDR5000A - 1/2" Capacity Reversible Drill (Red)

SKU: PDR5000A
R13 730,94 incl vat
  • Features
  • Five-vane air motor delivers high-torque power for added durability
  • Three-planet industrial strength gear train provides durability for heavy-duty applications
  • Precise .0025" chuck run-out for precision drilling
  • Includes side handle for added control in high-torque drilling applications
  • Specifications
  • Free Speed, RPM 450
    Replacement Chuck PDR5000-2
    Chuck Type Keyless
    Sound Pressure Level, dB(A) 82.6
    Length, inches (mm) 8.7 (222)
    Air Consumption, Free Speed, CFM (SCFM) [l/min] 3.8 (27) [108]
    Sound Power Level, dB(A) 108.0
    Recommended Air Pressure, PSIG (kPa) 90 (620)
    Air Inlet Thread Size, inches (NPT) 1/4 (18)
    Country Of Origin USA
    Rated Power, HP (kW) 0.45 (.33)
    Auxiliary Handle PDR5000-40A
    Torque Range, in-lb (N•m) 0–300 (0–34)
    Vibration Level, m/s² 0.9
    Spindle Thread, inches 1/2"-20 UNF
    Recommended Hose Size, inches (mm) 3/8 (10)
    Weight, lb (kg) 3 (1.3)
    Chuck Size, inches (mm) 1/2 (13)
    Air Consumption, Average, CFM (SCFM) [l/min] 3.8 (27) [108]
    Keyless Chuck PDR5000-2
    Chuck Key 30429
