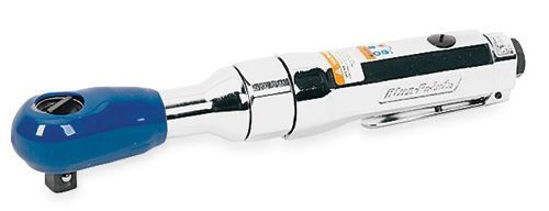

AT705B - 1/2" Drive Air Ratchet

SKU: AT705B
R5 968,50 incl vat
  • Features
  • 1/2" drive ratchet in a 3/8" drive body
  • Ball bearing mounted motor for longer tool life
  • Specifications
  • Free Speed, RPM 150
    Sound Pressure Level, dB(A) 89
    Length, inches (mm) 10.7 (273)
    Vinyl Boot AT700E49A
    Air Consumption, Free Speed, CFM (SCFM) [l/min] 3.0 (22) [85]
    Recommended Air Pressure, PSIG (kPa) 90 (620)
    Air Inlet Thread Size, inches (NPT) 1/4 (18)
    Country Of Origin JPN
    Sound Level dB(A) Pressure 89
    Vibration Level, m/s² 8.7
    Recommended Hose Size, inches (mm) 3/8 (10) ID min.
    Drive Size, inches (mm) 1/2 (13)
    Weight, lb (kg) 2.5 (1.14)
    Torque Range, ft-lb (N•m) 5–50 (6–68)
    Overall Length, inches (mm) 10.75 (273)
    Square Drive, inches 1/2
    Sound Level, Free Speed, dB(A) 89
