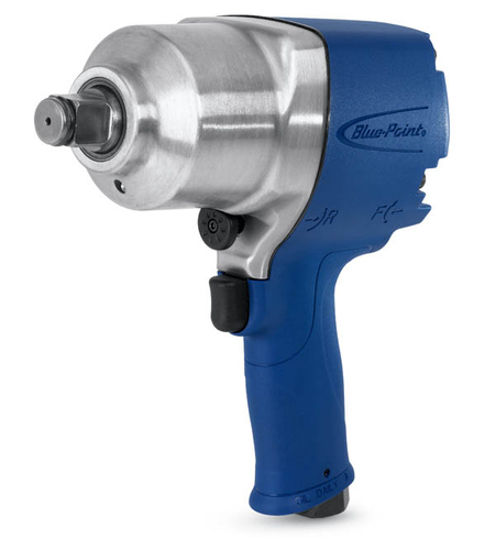

AT670 - 3/4" Drive Impact Wrench

SKU: AT670
R20 596,84 incl vat
  • Features
  • Lightweight composite housing with an aluminum nose
  • Three-position thumb-operated forward/reverse lever
  • Exhaust is released through the bottom of the handle, away from the work area
  • Twin-hammer mechanism
  • Specifications
  • Free Speed, RPM 6,700 (F), 6,900 (R)
    Sound Pressure Level, dB(A) 99
    Length, inches (mm) 8.5 (216)
    Air Consumption, Free Speed, CFM (SCFM) [l/min] 5.6 (40) [159]
    Air Inlet Thread Size, inches (NPT) 3/8 (18)
    Country Of Origin TWN
    Sound Level dB(A) Pressure 99
    Maximum Torque, ft-lb (N•m) 1,050 (1,423)
    Blows Per Minute, BPM 1,050
    Vibration Level, m/s² 2.44
    Recommended Hose Size, inches (mm) 3/8 (10) ID min.
    Anvil Type Friction Ring
    Drive Size, inches (mm) 3/4 (19)
    Weight, lb (kg) 7.5 (3.44)
