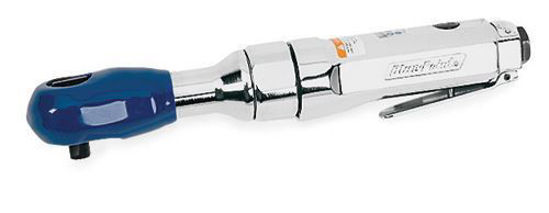

AT700F - 3/8" Drive Heavy-Duty Air Ratchet

SKU: AT700F
R5 847,64 incl vat
  • Features
  • Delivers 5-45 ft-lb of torque
  • Rugged ball bearing mounted air motor and precision planetary gear system
  • Easy-to-use variable-speed throttle plus adjustable air regulator
  • Lightweight aluminum housing
  • Specifications
  • Free Speed, RPM 165
    Sound Pressure Level, dB(A) 89
    Length, inches (mm) 10.1 (257)
    Vinyl Boot AT700E49A
    Air Consumption, Free Speed, CFM (SCFM) [l/min] 3.0 (22) [85]
    Recommended Air Pressure, PSIG (kPa) 90 (620)
    Air Inlet Thread Size, inches (NPT) 1/4 (18)
    Country Of Origin JPN
    Sound Level dB(A) Pressure 89
    Maximum Torque, ft-lb (N•m) 45 (61)
    Vibration Level, m/s² 8.7
    Recommended Hose Size, inches (mm) 3/8 (10) ID min.
    Drive Size, inches (mm) 3/8 (10)
    Weight, lb (kg) 2.5 (1.14)
    Torque Range, ft-lb (N•m) 5–60 (6–81)
    Overall Length, inches (mm) 10.12 (391)
    Square Drive, inches 3/8
    Sound Level, Free Speed, dB(A) 89
