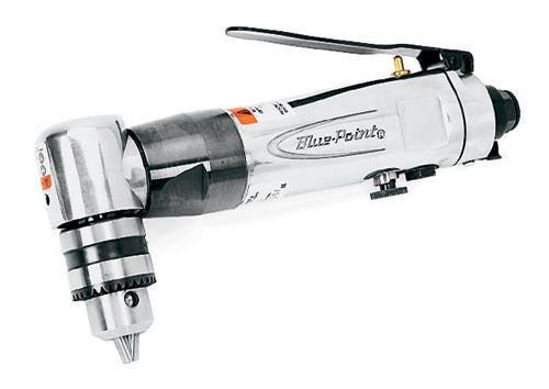

AT811 - 3/8" Drive Angle Drill

SKU: AT811
R7 350,41 incl vat
  • Features
  • Convenient one-handed push-button forward/reverse operation
  • Rear exhaust keeps air away from the work area
  • Ball-bearing construction for longer tool life
  • Specifications
  • Free Speed, RPM 1,320
    Sound Pressure Level, dB(A) 110
    Length, inches (mm) 8.2 (208)
    Air Consumption, Free Speed, CFM (SCFM) [l/min] 3.4 (24) [95]
    Recommended Air Pressure, PSIG (kPa) 90 (620)
    Replacement Chuck only AT803-2
    Air Inlet Thread Size, inches (NPT) 1/4 (18)
    Chuck Cap., inches (mm) 3/8 (10)
    Country Of Origin TWN
    Sound Level dB(A) Pressure 110
    Rated Power, HP (kW) 0.45 (.33)
    Torque Range, in-lb (N•m) 0–55 (0–6)
    Vibration Level, m/s² <.8
    Spindle Thread, inches 3/8"-24 UNF
    Recommended Hose Size, inches (mm) 3/8 (10) ID min.
    Horsepower, HP 0.25
    Weight, lb (kg) 2.2 (1)
    Sound Level, dB(A) 110
    Chuck Size, inches (mm) 3/8 (10)
    Air Consumption, Average, CFM (SCFM) [l/min] 3.4 (24) [95]
    Overall Length, inches (mm) 8.2 (208)
    Chuck Key AT811-36
