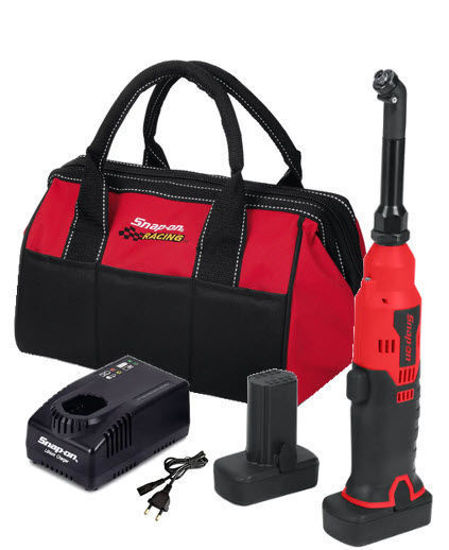

CDRR200545U2-WO - 14.4V MicroLithium Cordless 45° Angle Head Mini Drill Kit with 2 x Batteries (Red)

Availability: 2 in stock
SKU: CDRR200545U2-WO
R20 573,50 incl vat
R16 458,80 incl vat
10
  • Features
  • Small compact head for greater access into places traditional pistol style drills cannot
  • Low runout for precise accurate drilling
  • Accepts 1/4"-28 threaded bits and accessories and standard 1/4" accessories with adaptor (not included)
  • Double ball bearing supported spindle shaft for durability
  • Spiral beveled gears for durability and smooth operation
  • 45° angle head for great accessibility
  • Built-in LED illuminates work area
  • Soft grip handle for positive tool control
  • Battery fuel gauge indicates the battery state of charge
  • Variable speed trigger for slow start up
  • Proven lower unit and head
  • Kit Includes : Tool, 2 x Batteries, Charger and a Tote Bag
  • Specifications :
  • Free Speed, RPM 6,000
    Length Angle Head (Front to Back), inches (mm) 1 (25)
    Tool Only CDRR200545DB
    Sound Pressure Level, dB(A) 74.2
    Charge Time, minutes 70
    Length, inches (mm) 12 (305)
    Width, inches (mm) 1.8 (46)
    Battery Type Lithium 2.5 Ah
    Country Of Origin USA
    Height (Head Assembly), inches (mm) 4.4 (112)
    Height with Battery, inches (mm) 13.1 (333)
    Battery (qty) CTB8174 (2)
    Vibration Level, m/s² 8.02
    RPM (high) 6,000
    Warranty (battery) 1 Year
    Gear Box Type Single-Speed
    Height, inches (mm) 3.3 (84)
    Weight with Battery, lb (kg) 1.4 (.64)
    Battery Voltage 14.4
    Torque Output, in-lb (N•m) 12 (1.355)
    Warranty (tool and charger) 1 Year
    Optional 1/4" Collet YA409-6
    Operating Temperature Range -4–120 °F (-20–60 °C)
    Chuck Capacity 1/4"–28
    Battery Charger CTCEU772A
    Bit Thread Size 1/4"-28
