Snap-on Diagnostic Software

CDRR761U2-WO - 14.4V 3/8" MicroLithium Cordless Right Angle Screw Gun/Drill Kit - Red

SKU: CDRR761U2-WO
R15 904,50 incl vat
  • Features

    150 in-lb of torque handles a wide variety of applications
    Two-speed drill (450/1,550 RPM)—low speed for higher torque applications/high speed for steel drilling
    Variable-speed switch—good featherability at low speed for driving screws and control
    Nine-position clutch delivers 8–50 in-lb of torque
    Lightweight drill—with battery only 3.2 lb
    3/8" keyless drill chuck—single-sleeve durable steel chuck makes changing bits easy
    Cushion grip handle—nonslip comfort for the operator, positive tool control allows the operator to work longer with less fatigue
    Small size to get in tight spots—under dash, firewall, etc.
    One-year full warranty and serviced by Snap-on® Service Centers
    Built-in gauge displays the battery charge state
    Integrated LED light

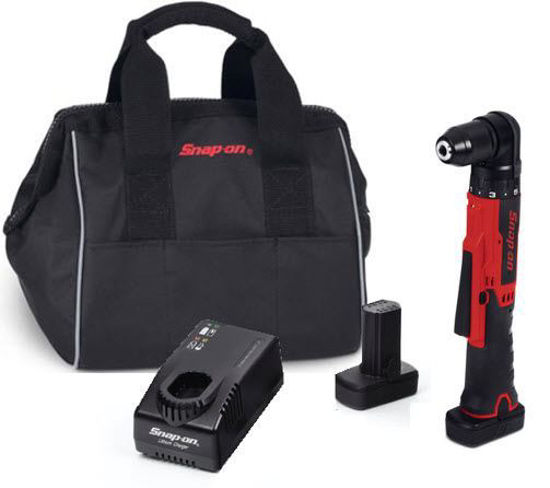

    Kit Includes : Tool, 2 x Batteries, Charger and Tote Bag
  • Also Available in Green (CDRR761GU2-WO) and Hi-Viz (CDRR761HVU2-WO)

Specifications

Battery (Quantity) CTB8174 (2)
Tool Only CDRR761DB
Sound Pressure Level, dB(A) 73.7
Charge Time, minutes 70
Length, inches (mm) 13.3 (337.8)
Free Speed (RPM), Low (High) 0–450 (0–1,550)
Width, inches (mm) 1.9 (48.5)
Sound Power Level, dB(A) 85.3
Battery Type MicroLithium 2.5 Ah
Chuck Cap., inches (mm) 3/8 (10)
Country Of Origin CHN
RPM (low) 0–450
RPM (high) 0–1,550
Operating Temperature, °F (°C)         -4–120 (-20–60)
Warranty (battery) 1 Year
Gear Box Type 2-Speed
Height, inches (mm) 7.8 (198.1)
Weight with Battery, lb (kg) 3.1 (1.4)
Battery Voltage 14.4
Torque Output, in-lb (N•m) 150 (16.9)
Warranty (tool and charger) 1 Year
Clutch Settings 9
Battery Charger CTCEU772A
