EEDM575D - Digital Clamp On Meter

SKU: EEDM575D

R10 913,50 incl vat

Qty:

Features
Measures DC V, AC V, OHMS, DC AMPS, AC AMPS, Hz, Temperature
True RMS meter that provides accurate measurements of non-linear current
Designed to measure starting current to 400 A, as well as volts, resistance and frequency
Use to diagnose wheel speed sensors, injector control signals, cam and crank outputs, test cables, connections and fuses LCD display and analog bar graph enhance viewing of fast signal changes
Records maximum and minimum values of RMS current, frequency or other measurements with Min/Max/Rec function
Meets UL®, IEC® and cULus61010 safety standards

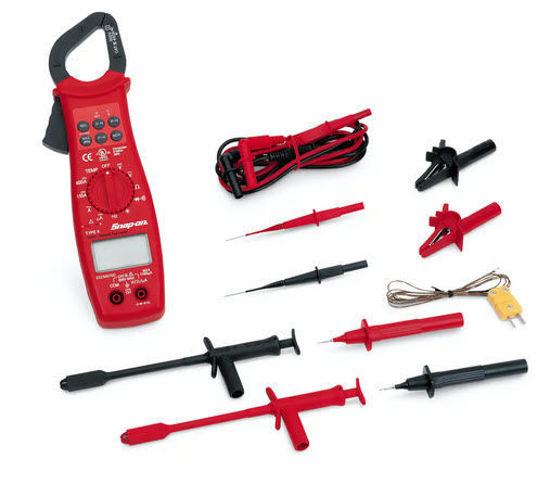

Includes test leads, temperature probe, soft carrying case, battery and instruction manual

Capacitance	100 mF
RPM	EEDMRPMG (opt.)
Low Pass Filter (LPF)	No
Case or Zipper Pouch	EEDM575DBCSE
Adjustable Trigger Level	No
Temperature	EEDMTEMP-2
AC Volts	600
Basic DC Accuracy, %	0.5
Micro Amps	400 DC
Country Of Origin	KOR
Dimensions, inches	10 x 1-3/8 x 2-1/2
Noise Reduction Circuit	No
mS Pulse Width	No
CAT Rating	CATIII 600 V
Backlight	No
Auto Shut-off	Yes
Test Leads	MTA24
Certificate of Calibration Model	EEDM575DCRT
DC Amps	400
UL® Listed	cULus 61010-1
Glitch Capture	No
Insulation Test	No
Analog Bar Graph	Yes
Resistance, ohms	110M Ohm
Data Hold	Yes
Auto Range	Yes
Duty/Dwell	No
True RMS (Root Mean Square)	Yes
AC Amps	1,100
Display Count	11,000
Fuses	EEDMFUSE-1
Blown Fuse Identifier	No
Comp. Output (USB)	No
Min/Max	Yes
DC Volts	600
Easy Open Battery and Fuse Door	Yes
Color Screen	Yes
Frequency	10 kHz
