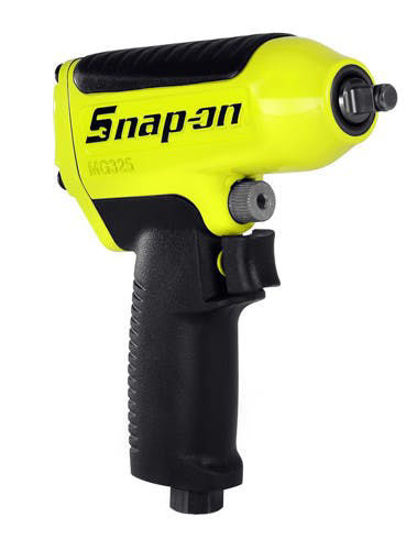

MG325HV - 3/8" Drive Air Impact Wrench (Hi-Viz)

SKU: MG325HV
R13 060,41 incl vat
  • Features
  • 325 ft-lb of maximum torque; 10,700 RPM free speed; 1,400 BPM
  • Twin-hammer impact mechanism delivers hard-hitting blows with fewer moving parts, quickly removing stubborn fasteners
  • Continuous oil bath lubrication prolongs the life of the tool by reducing premature component wear
  • Eight-vane motor delivers maximum speed and torque
  • Lightweight, balanced design distributes weight evenly to reduce user fatigue
  • One-handed forward/reverse lever for user convenience
  • Patented field-replaceable cushion grip handle absorbs vibration and insulates the user’s hand in cold temperatures
  • Comfort cushion trigger button allows the user to work comfortably with less finger stress
  • Anvil stop feature means anvil will stop when the trigger is released to avoid throwing fasteners
  • Protective boot and muffler kit are included
  • Weighs 2.8 lb (1.3 kg)
  • Specifications
  • Free Speed, RPM 10,700
    Color Option: Red MG325
    Sound Pressure Level, dB(A) 99.1
    Length, inches (mm) 6.1 (155)
    Vinyl Boot MG325BOOT
    Air Consumption, Free Speed, CFM (SCFM) [l/min] 4 (28) [113]
    Country Of Origin USA
    Maximum Torque, ft-lb (N•m) 325 (440)
    Warranty 2 Year
    Blows Per Minute, BPM 1,400
    Color Option: Green MG325G
    Vibration Level, m/s² 4.5
    Air Inlet Thread Size 1/4"-18 NPT
    Recommended Hose Size, inches (mm) 3/8 (10)
    Anvil Type Friction Ring
    Drive Size, inches (mm) 3/8 (10)
    Weight, lb (kg) 2.8 (1.3)
