- Features

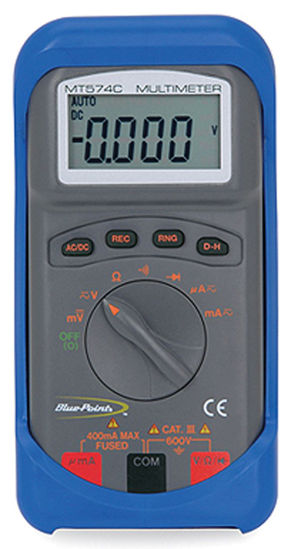

- The MT574C offers both automatic and manual ranging
- Measure Ohms to determine resistance of a coil or spark plug wire
- Use the diode function to test the diode pack on a typical alternator
- Use DC Voltage ranges to verify proper voltage level is arriving at a sensor or circuit
- Large, easy-to-read, 4000 count LCD display with low battery indication
- Lock readings on display with Data Hold
- Measure AC Voltage signals on digital MAF sensors plus wheel and vehicle speed sensors
- Measure DC current to determine presence of a parasitic load
- Added protection against drops and the elements with included rubber boot
- Safety! cULus 3111 Listed
- Meets CE and IEC® 1010 safety standards
- 5 year Limited Warranty
- Specifications
-
| Capacitance |
No |
| RPM |
EEDMRPMG (opt.) |
| Low Pass Filter (LPF) |
No |
| Case or Zipper Pouch |
EEDM504B4 (opt.) |
| Adjustable Trigger Level |
No |
| Temperature |
EEDM506C†(opt.) |
| AC Volts |
600 |
| Basic DC Accuracy, % |
0.30 |
| Micro Amps |
No |
| Country Of Origin |
KOR |
| Dimensions, inches |
6 x 3 x 2 |
| Noise Reduction Circuit |
No |
| mS Pulse Width |
No |
| CAT Rating |
CATIII 600 V |
| Backlight |
No |
| Auto Shut-off |
Yes |
| Test Leads |
EEDM504B3 |
| Certificate of Calibration Model |
MT574CCRT |
| AC Amps, mA |
400 |
| DC Amps |
400 mA |
| UL® Listed |
cULus 3111 |
| Glitch Capture |
No |
| Insulation Test |
No |
| Analog Bar Graph |
No |
| Resistance, ohms |
40M |
| Data Hold |
Yes |
| Auto Range |
Yes |
| Duty/Dwell |
No |
| True RMS (Root Mean Square) |
No |
| Display Count |
4,000 |
| Fuses |
EEDMFUSE-1 |
| Blown Fuse Identifier |
No |
| Comp. Output (USB) |
No |
| Min/Max |
Yes |
| DC Volts |
600 |
| Easy Open Battery and Fuse Door |
No |
| Color Screen |
No |
| Frequency |
No |
