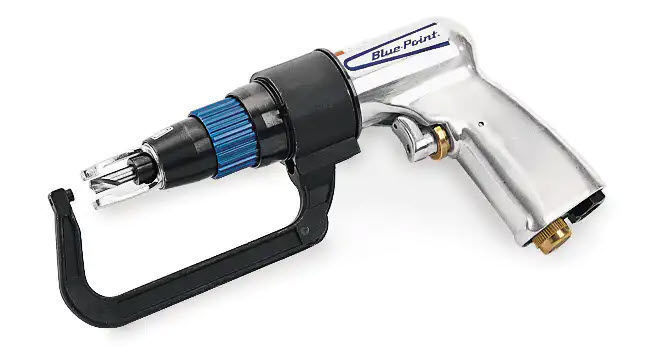

AT184 - Spotweld Drill

SKU: AT184
R12 829,24 incl vat
  • Features
  • Twist depth control collar allows precise setting of drilling depth up to 1/4"
  • Two-speed trigger for low or high-speeds
  • Includes (1) 5/16" (8 mm) drill bit and removeable clamp arm
  • Specifications :
  • Free Speed, RPM 0–1,000/0–1,800
    Sound Pressure Level, dB(A) 84
    Length, inches (mm) 7.9 (201)
    Bit Capacity, inches 1/4–25/64
    Air Consumption, Free Speed, CFM (SCFM) [l/min] 8.4 (60) [238]
    Recommended Air Pressure, PSIG (kPa) 90 (620)
    Air Inlet Thread Size, inches (NPT) 1/4 (18)
    Country Of Origin TWN
    Sound Level dB(A) Pressure 84
    Rated Power, HP (kW) 0.32 (.65)
    Spotweld Drill Bit (10 mm) (optional) AT183-51
    Vibration Level, m/s² <1.0
    Recommended Hose Size, inches (mm) 3/8 (10)
    Chuck Range, Dia., inches (mm) 5/16 (8) ID
    Spotweld Drill Bit (8 mm) (included) AT183-50
    Support Arm 5.5 (optional) AT184-26A
    Spotweld Drill Bit (6.5 mm) (optional) AT183-43
    Weight, lb (kg) 3.1 (1.4)
    Chuck Size, inches (mm) 5/16 (8)
    Overall Length, inches (mm) 7.9 (200)
    Sound Level, Free Speed, dB(A) 84
